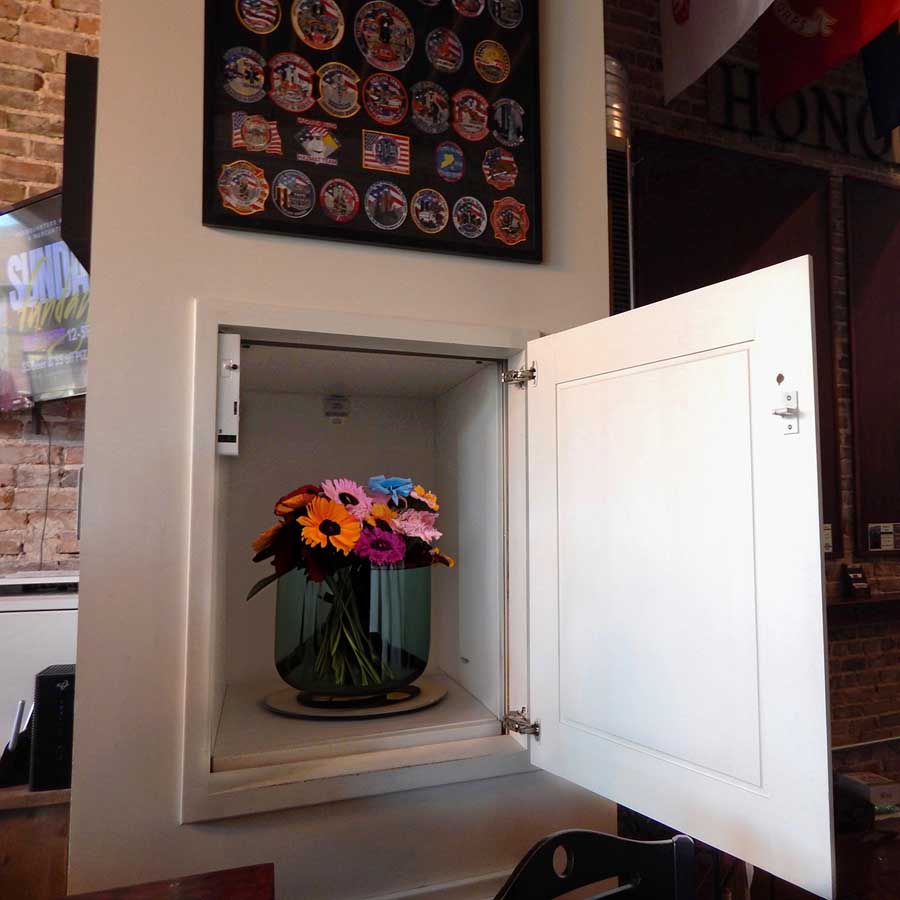

QuickServe II Dumbwaiter

Plug and play simple installation makes installation easy and can be done in half the time as it takes to install other dumbwaiters. The QuickServe II uses a rack and pinion drive so there are no cables, chains, or drums to install. The entire motor and electronics assembly comes pre-assembled on the lower section of the track. Major features include:
  • Rack and pinion drive
  • No slack cable lock-ups
  • Battery operated
  • Fast and easy installation – plug and play
  • Aluminum rail instead of steel T-rail
  • No separate machine room required
  • No remote mounted controller
  • On board diagnostic troubleshooting LED light
  • 20" Wide x 20" Deep x 30" High – 200 lbs capacity
  • 24" Wide x 24" Deep x 30" High – 200 lbs capacity
  • 30" Wide x 30" Deep x 36" High – 275 lbs capacity
  • Optional stainless steel car
  • Warranty 5 years on motor and gear, and 2 years on all other parts
  • Max Travel - Standard

    10'

  • Max Travel - Optional

    30'

  • Car Size - Standard

    20Wx20Dx30H or 24Wx24Dx30H

  • Car Size - Optional

    30Wx30Dx36H

  • Stops - Standard

    2

  • Stops - Optional

    3 or 4

  • Weight Capacity - Standard

    200

  • Weight Capacity - Optional

    275

  • Stainless Steel Panel Option

    Yes

  • Hardwood Door Option

    Yes

  • Straight Through Car Option

    Yes

  • 90° Car Option

    Yes
